L.A. MED-HIVE

Community Medical Center

Academic • USC M.Arch.
Instructor • Patrick Tighe
Team Members • Yisheng Wu, Mikina Ito
Project Descrption • 4-story, mixed use, mid-rise Building
Use • Community Commercial (C2)

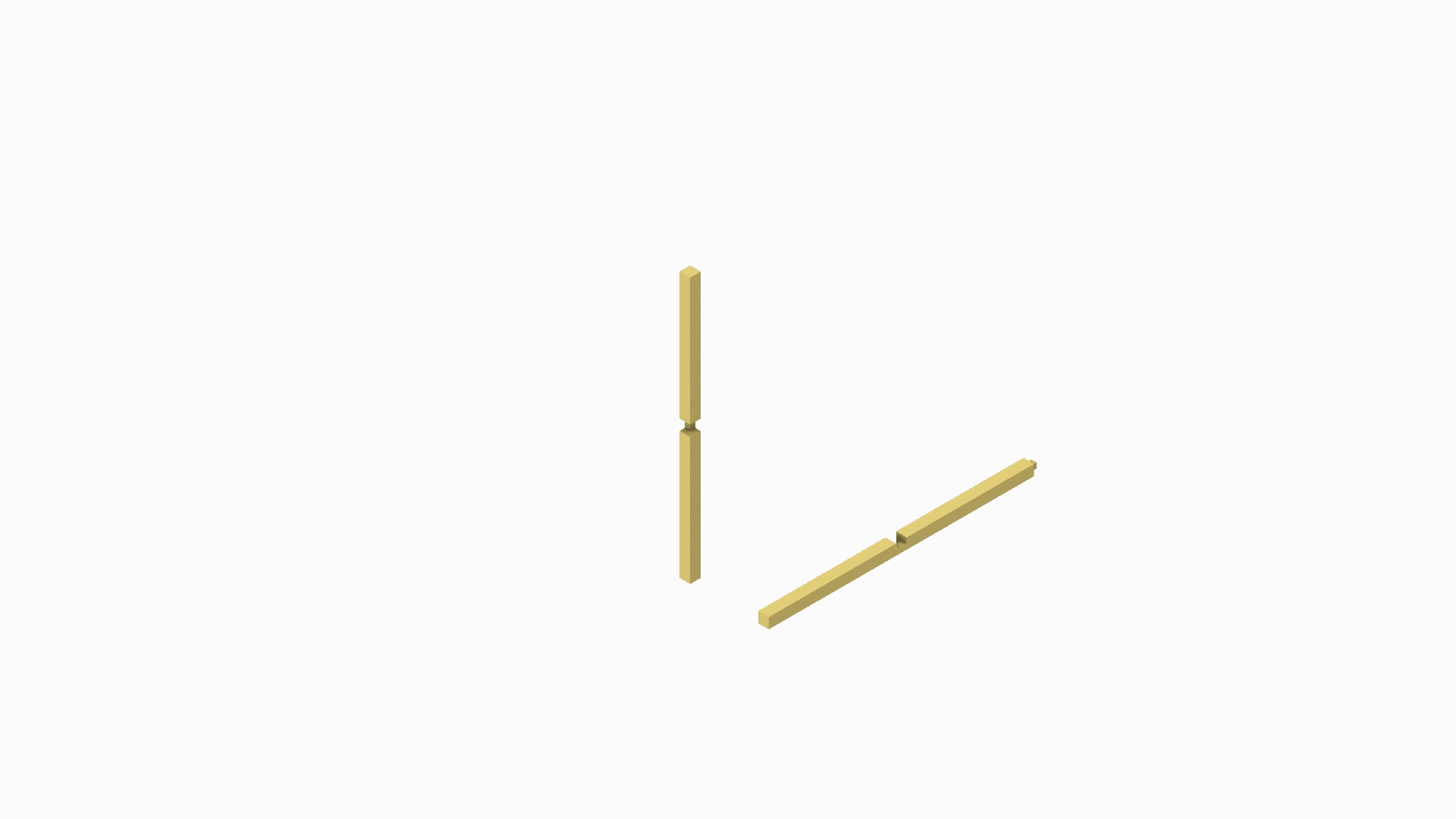

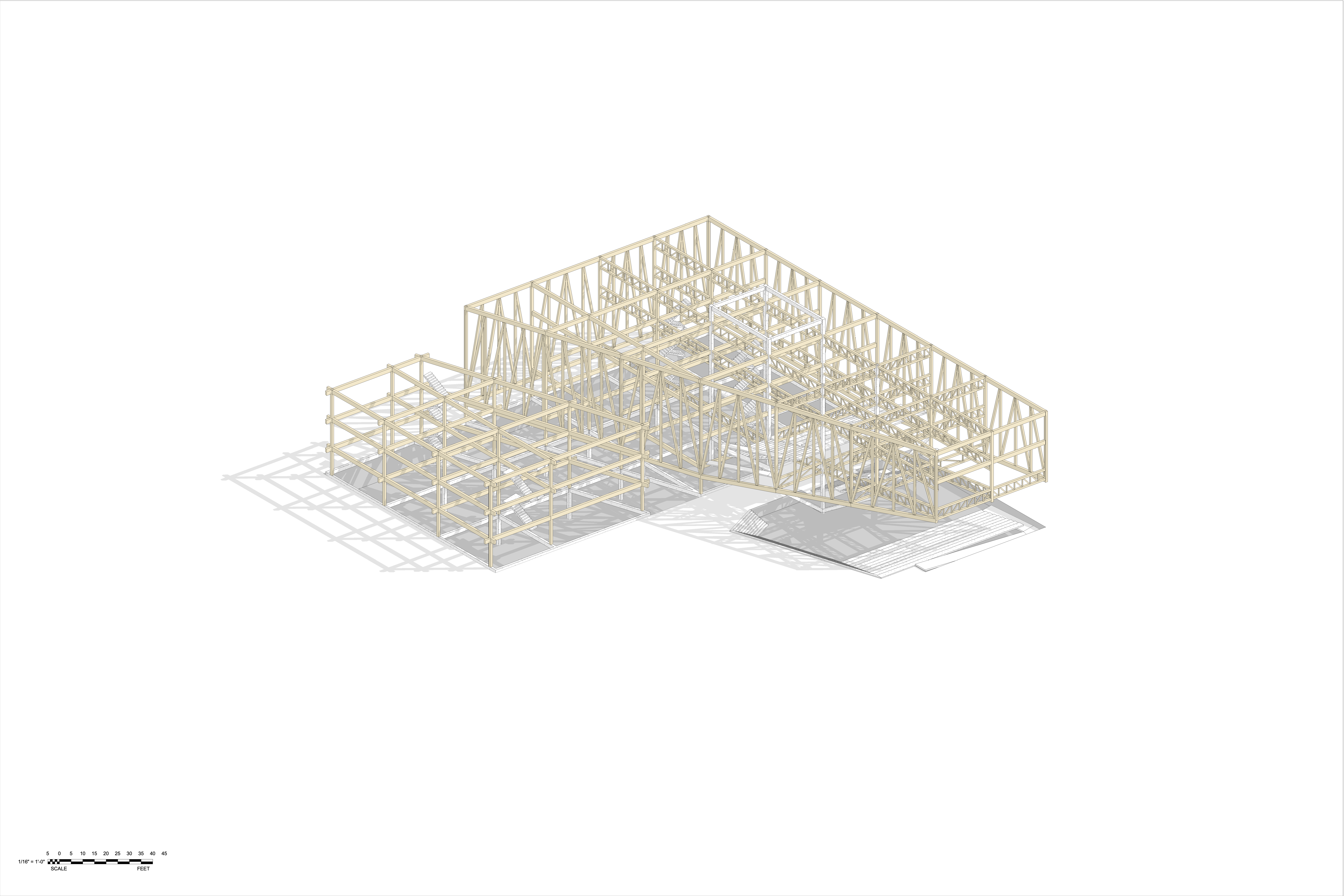

Construction Type • Type IV (CLT)
Project Duration • 4 months

Spring 2021

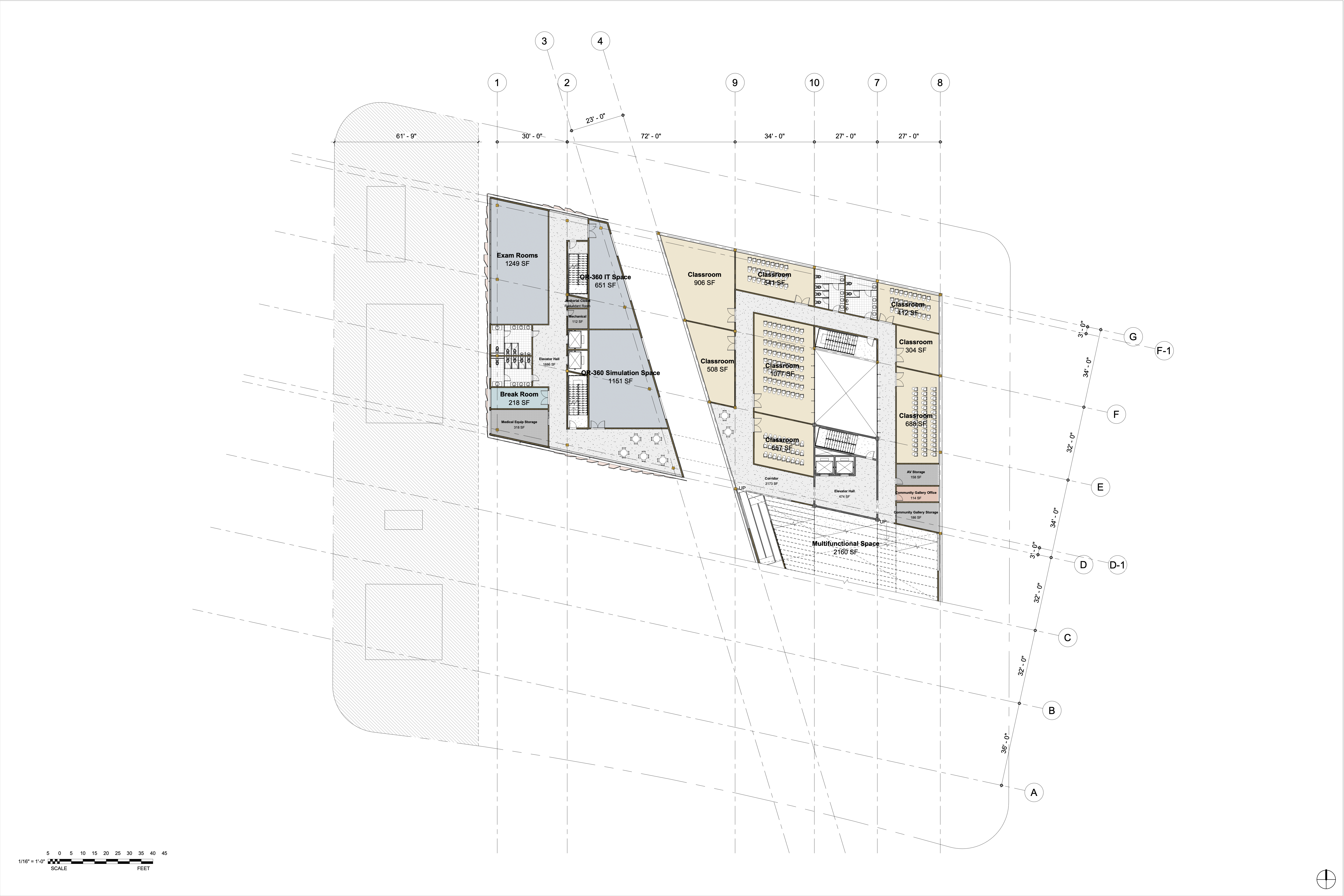

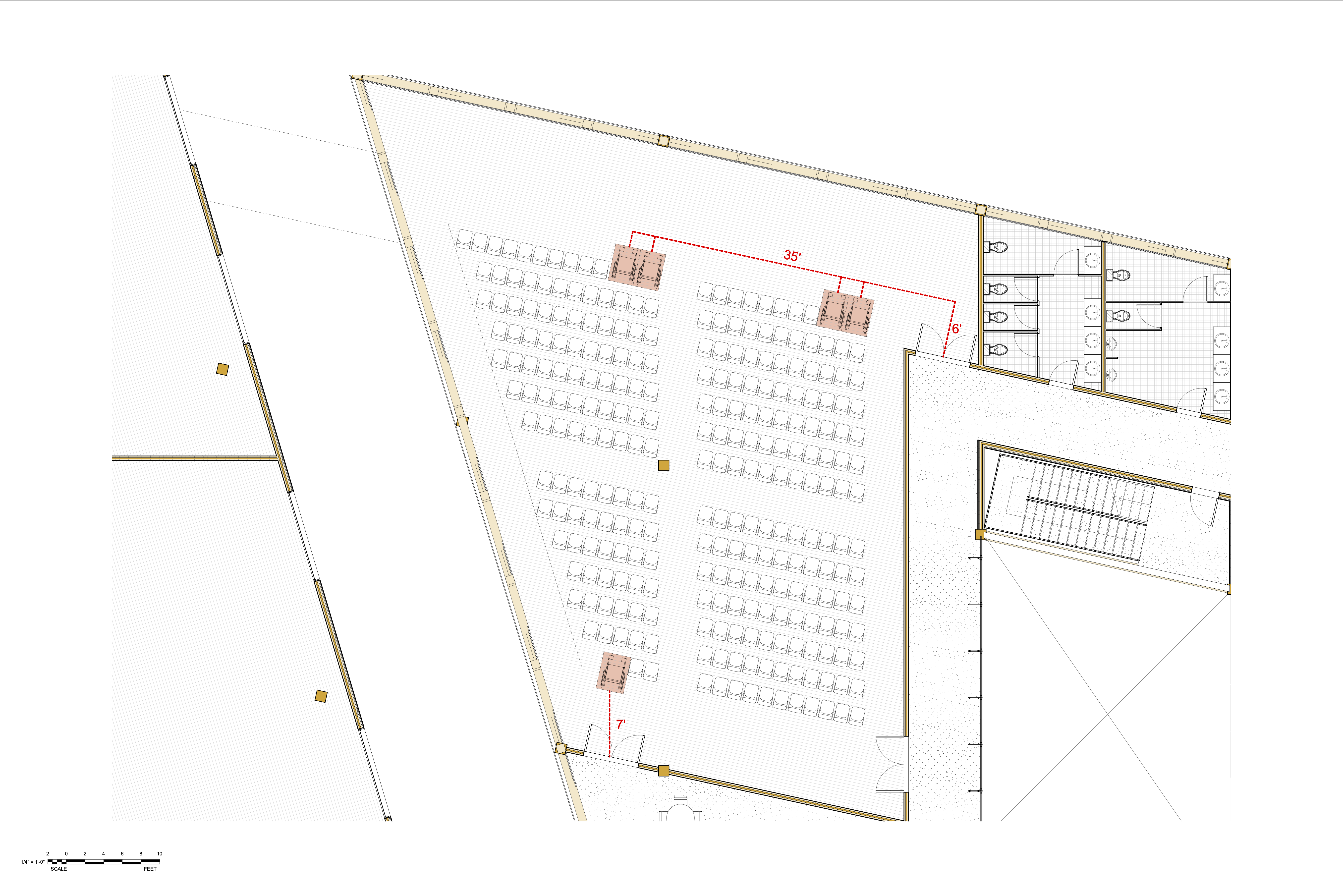

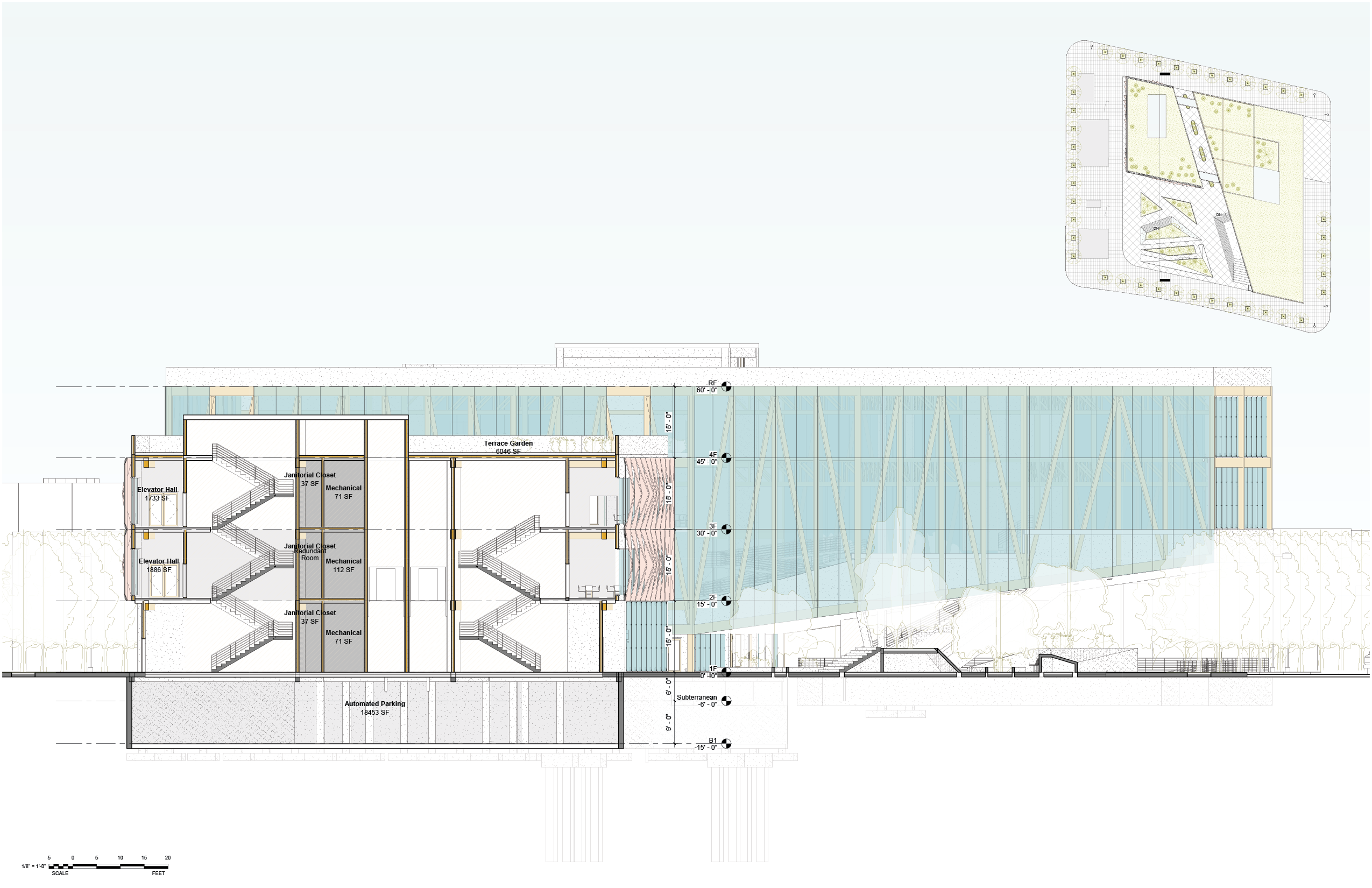

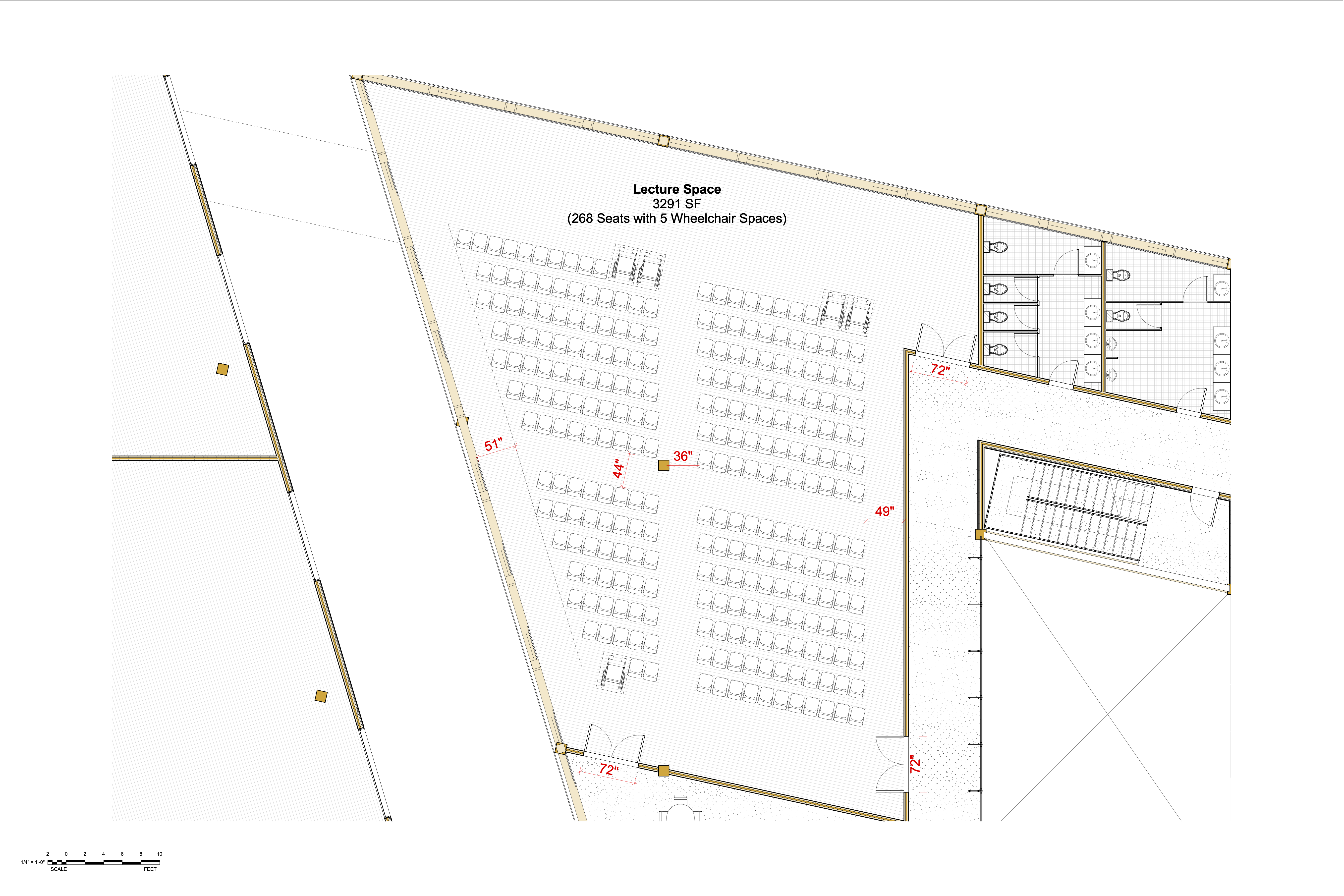

Multi-functional Space (Lecture Hall, Stair Class)

L.A. Med-Hive is located at the intersection of two of the city’s newest rail projects, the Expo Line and the Crenshaw Line, which links itself via rapid transit to Santa Monica to the west, Downtown to the east, and Inglewood to the south. This area is where medical care is a scarce and expensive resource. Community clinics partially fill this void, but often the wait times are long, and the technical level of care is limited. This project aims to provide medical resources, a community center, and green space, which is designed to simultaneously serve both the health care needs of the community as well as connect residents with other County and City agencies.

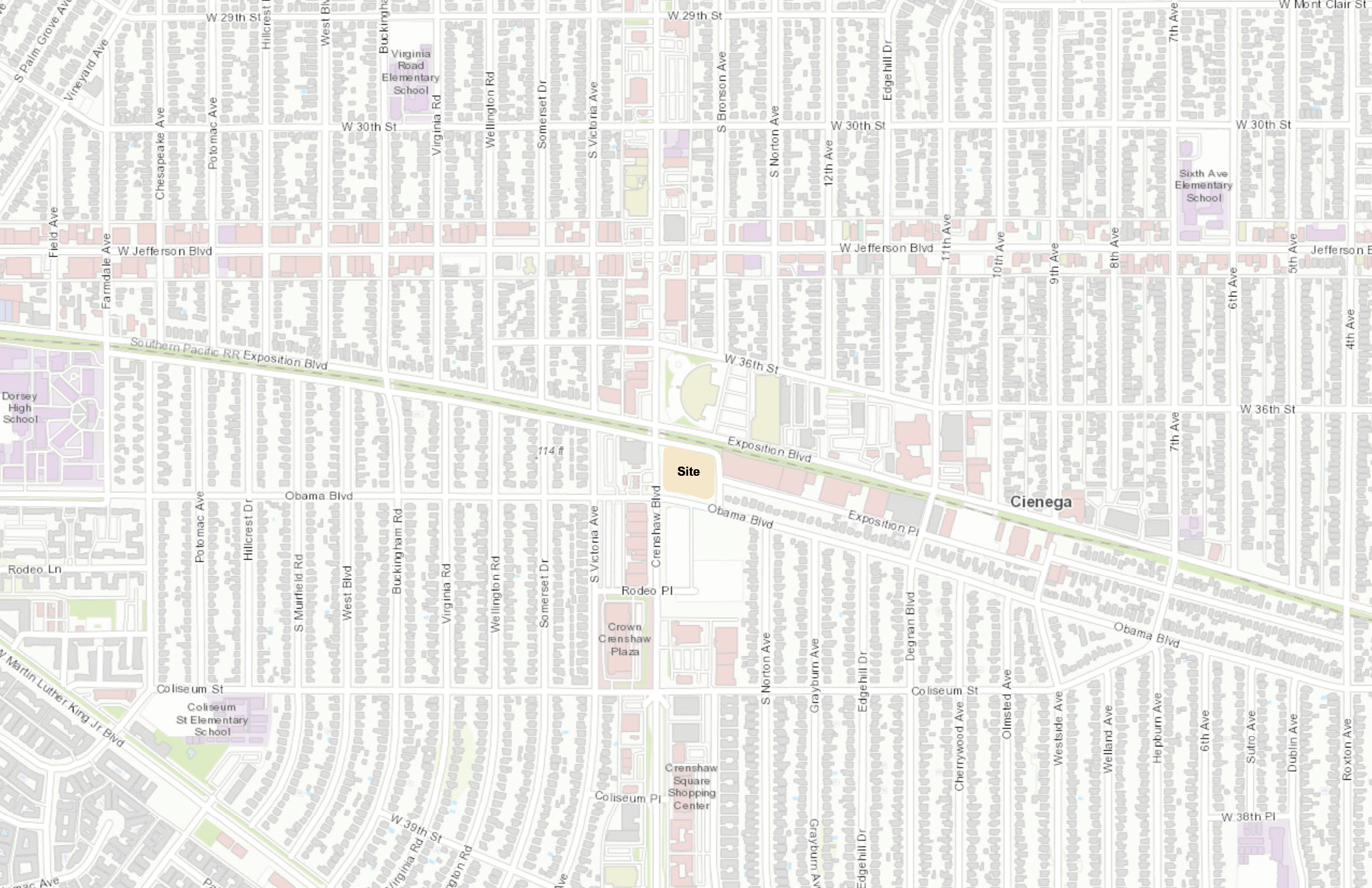

Site Location & Background

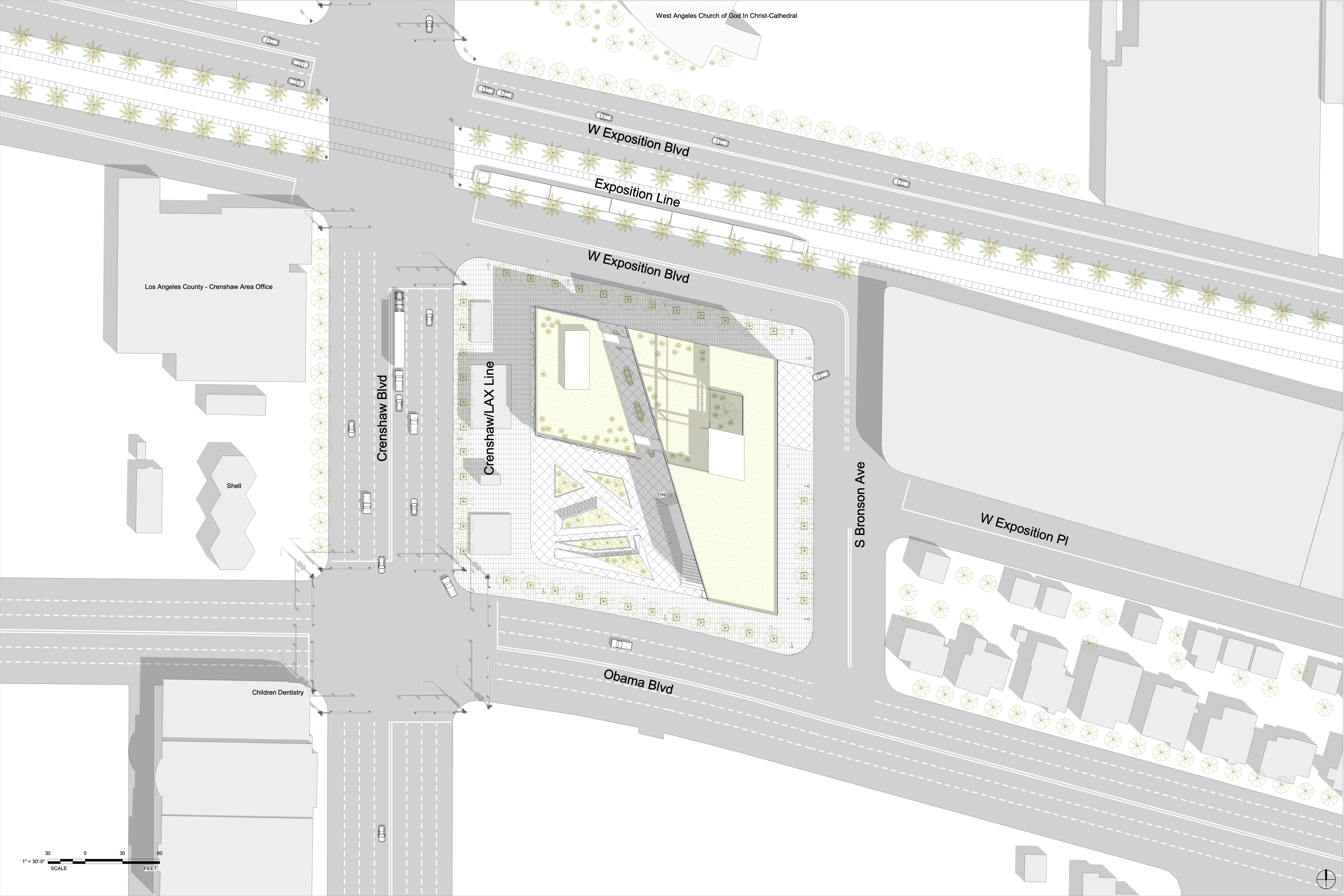

The site is located on the southeast corner of Exposition and Crenshaw Boulevards and to the south of the westbound Expo Line station platform. This site will include a transit plaza with escalators, stairs, and elevator access to the below-grade Expo/Crenshaw Station.

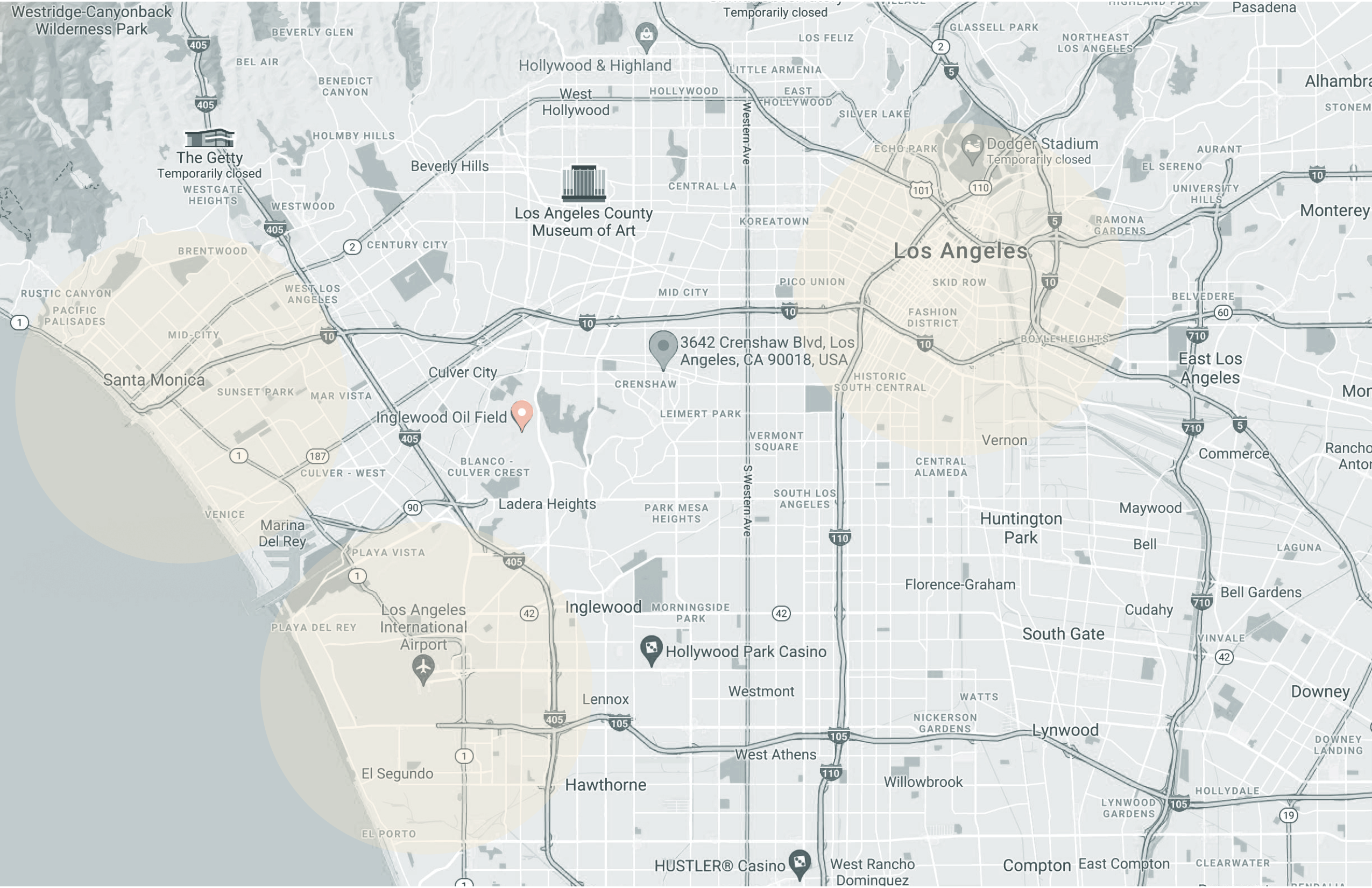

3 of the Los Angeles basin’s major job centers:
1. Downtown Los Angeles (297,000 jobs)
2. Santa Monica (83,000 jobs)
3. the LAX area (100,000 jobs)

There are approximately 7,100 people currently living in 2,700 households located within a half-mile of the station area. These households reside in a mix of owner-occupied homes (47% of total households) and rentals (53% of households). The rate of owneroccupied homes is substantially higher in the station area than the percentage in the City of Los Angeles as a whole (38% of owneroccupied units), pointing to the stability of the immediate surrounding area.

Property Info & Zoning

Specific Zoning Area: Crenshaw Corridor
Zoning: C2-2D-SP
Use: Community Commercial
Construction Type: Type IV
Occupancy Groups: Group A-3, I, M
Height Limitations: 75’
Lot Coverage: 50%
Gross Lot Area: 76,734.7 SF
Net Building Area: 56,612.43 SF
Min Lanscape: 30%
FAR: 3:1
Max Height: 75’
Setback: 61.9’(Crenshaw Blvd)

→ FAR may be further increased one foot for each foot of parking placed below grade to a maximum of an additional 1:1 FAR. The additional FAR granted for subterranean parking is only available to Affordable Housing Incentive projects when residential uses are proposed. Project proponents should also take into consideration that the historic high mark of the water table is located approximately 20’ deep and has been noted as shallower on adjoining properties.

→ For a Project with any residential uses in a TOD area, it is pursuant to include the number of restricted affordable units sufficient to qualify for a 35% density bonu (20% Low Income Units / 11% Percentage Very Low Income Units / 30% Moderate Income Units)

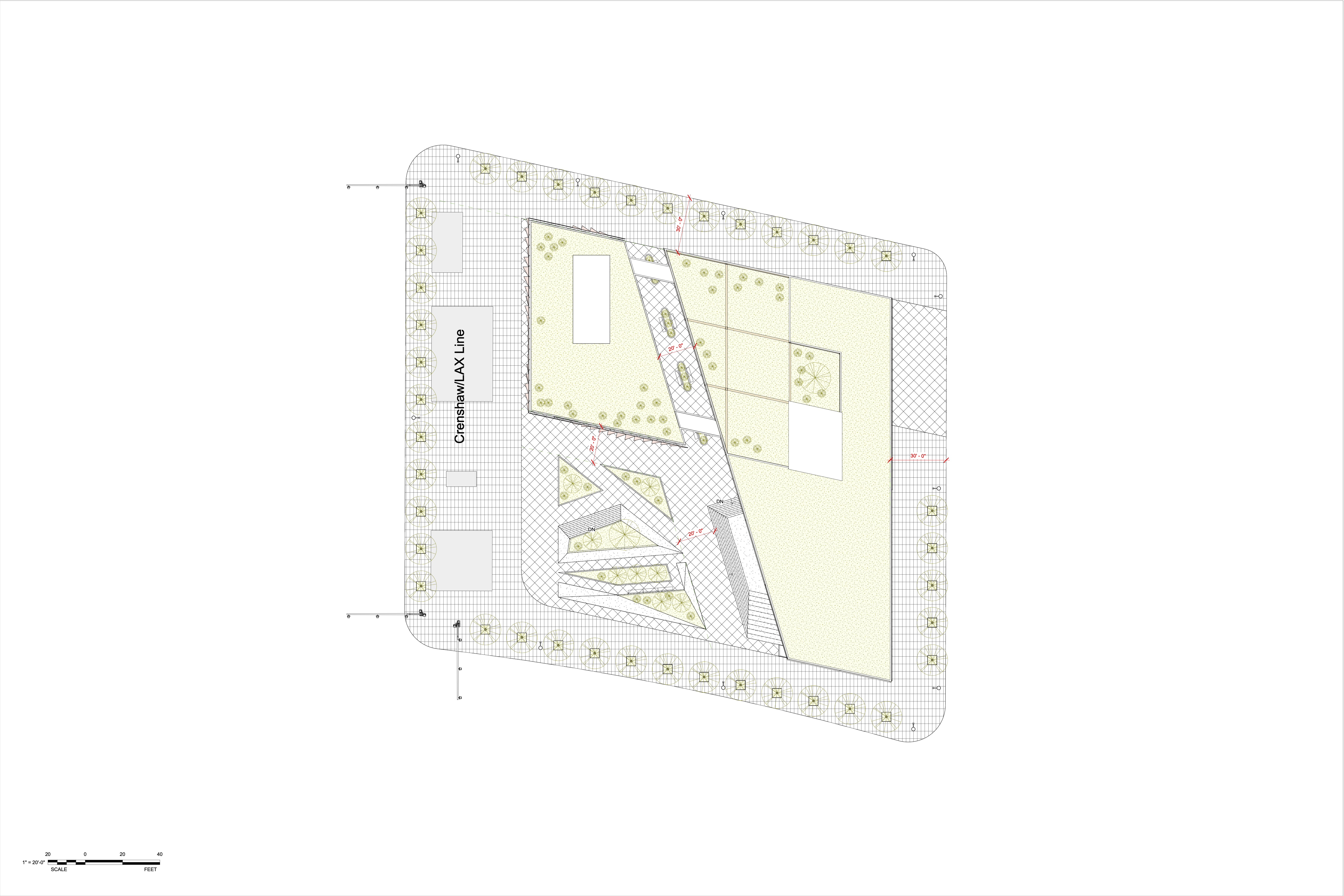

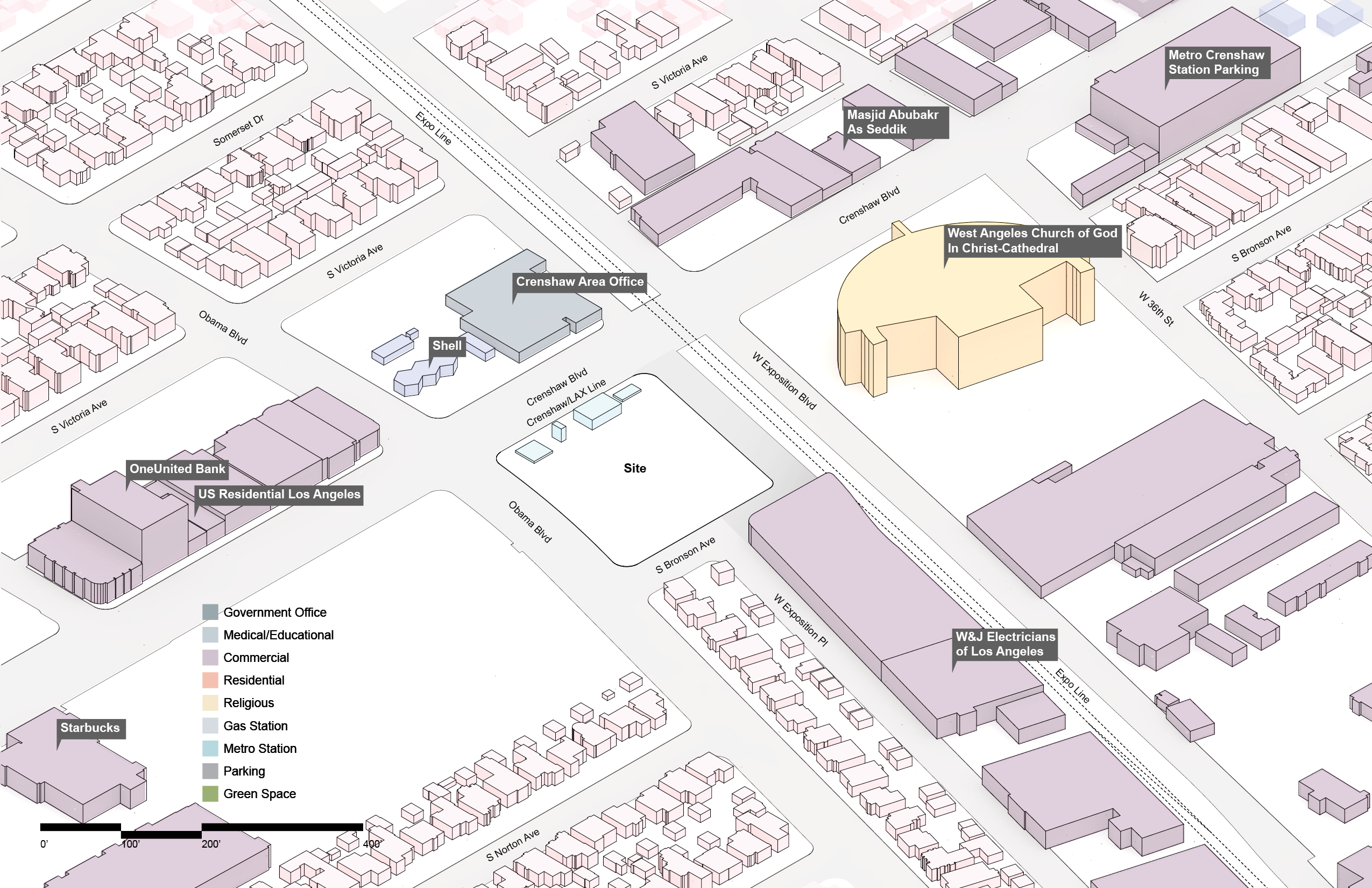

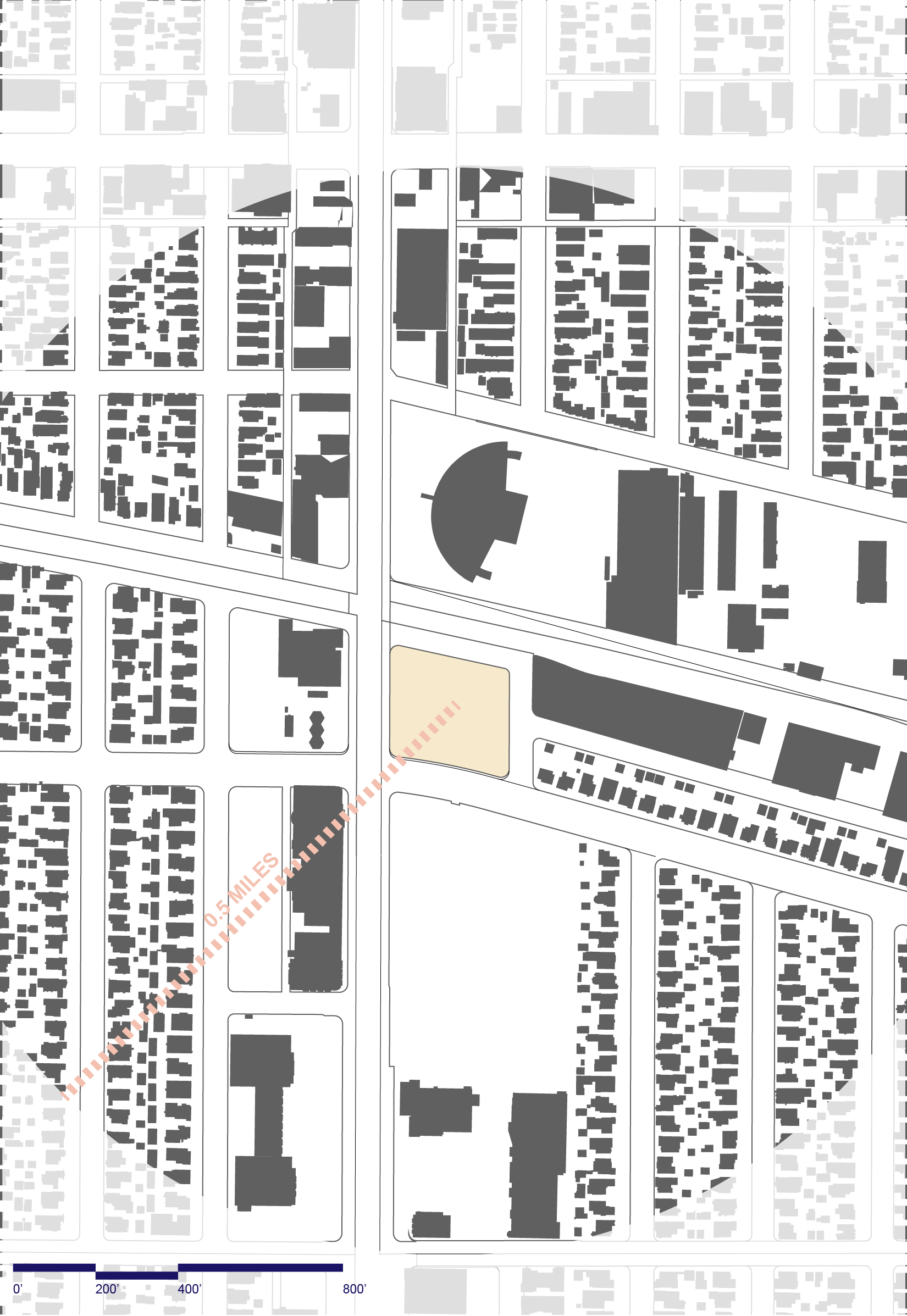

Site Analysis

Surrounding Neighborhood
A low-scale generally single-family home neighborhood lies to the east of the site. Small street-facing businesses in one-to-two-story structures are along with Exposition Blvd and Crenshaw Blvd.

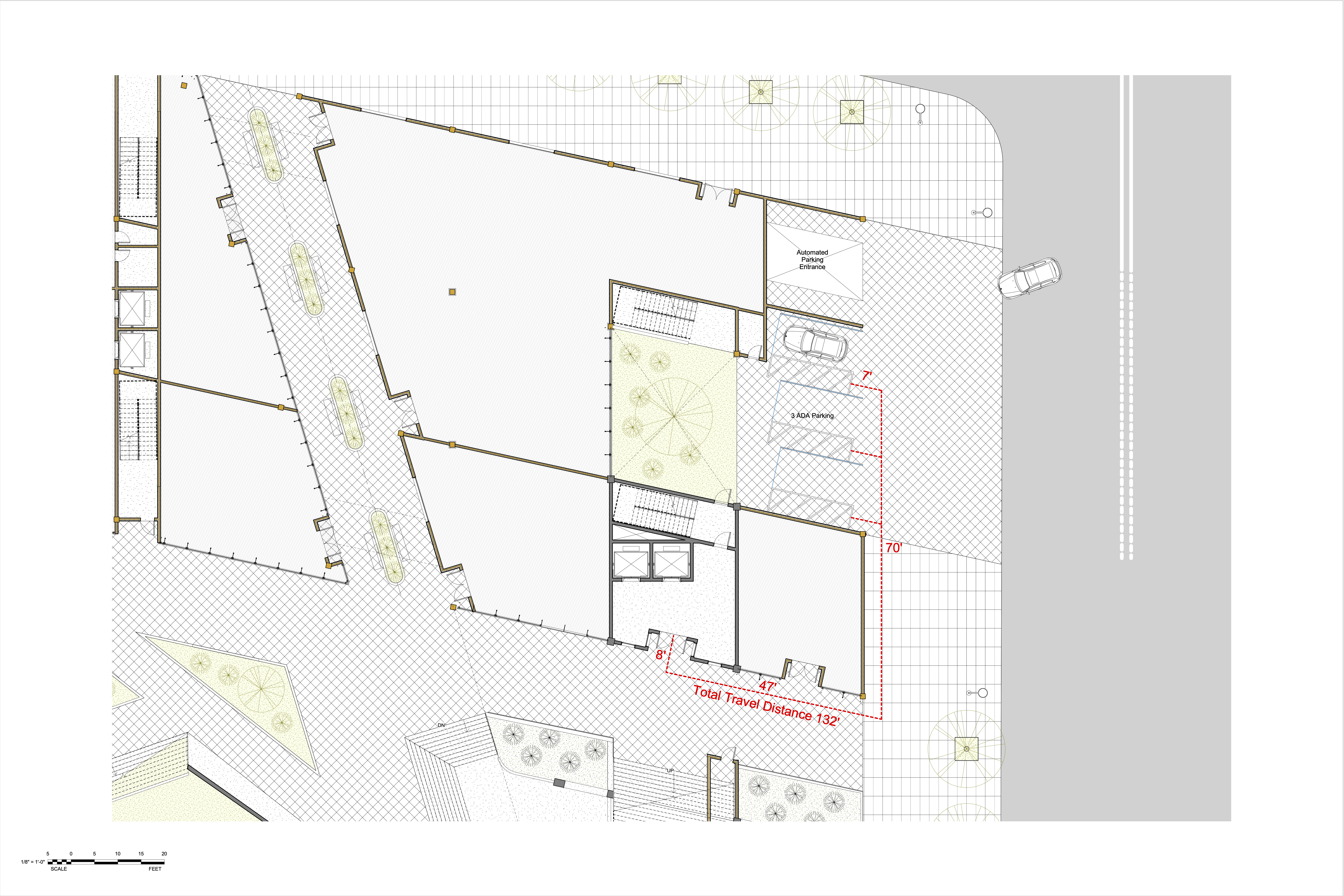

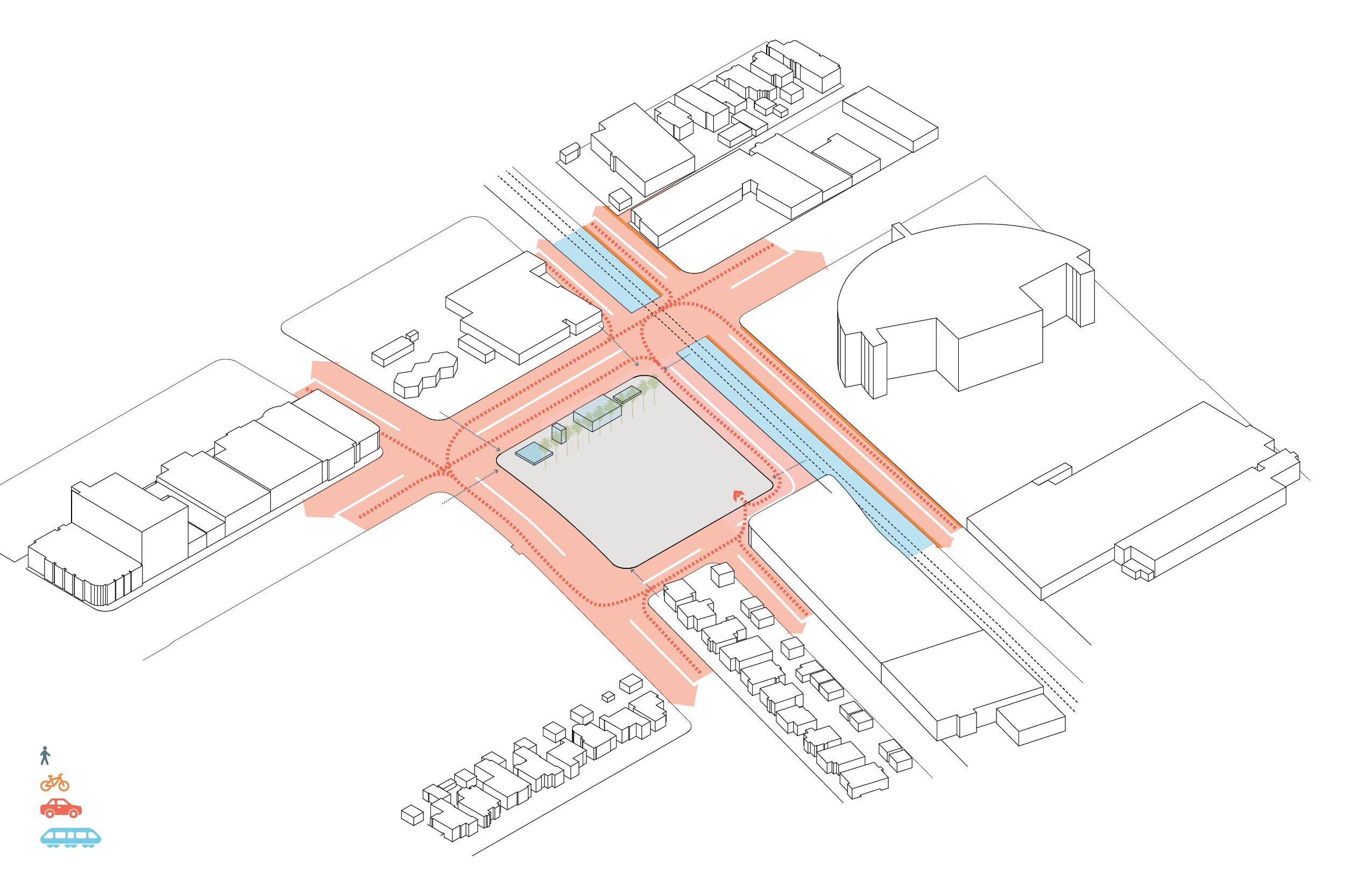

Site Access
The main entrance to the site is recommended to be away from the main street.

Concept

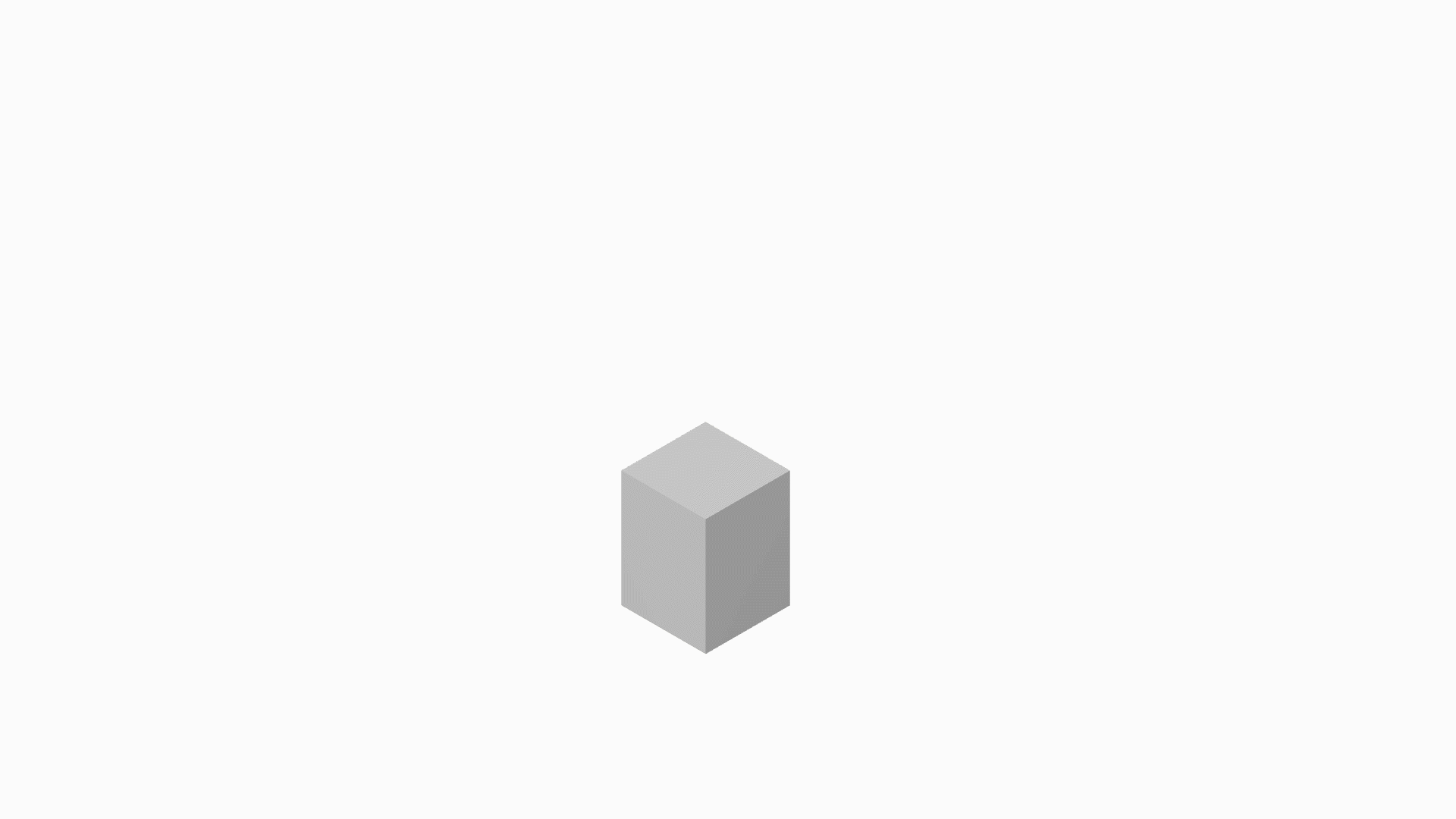

Connection v.s Disconnection

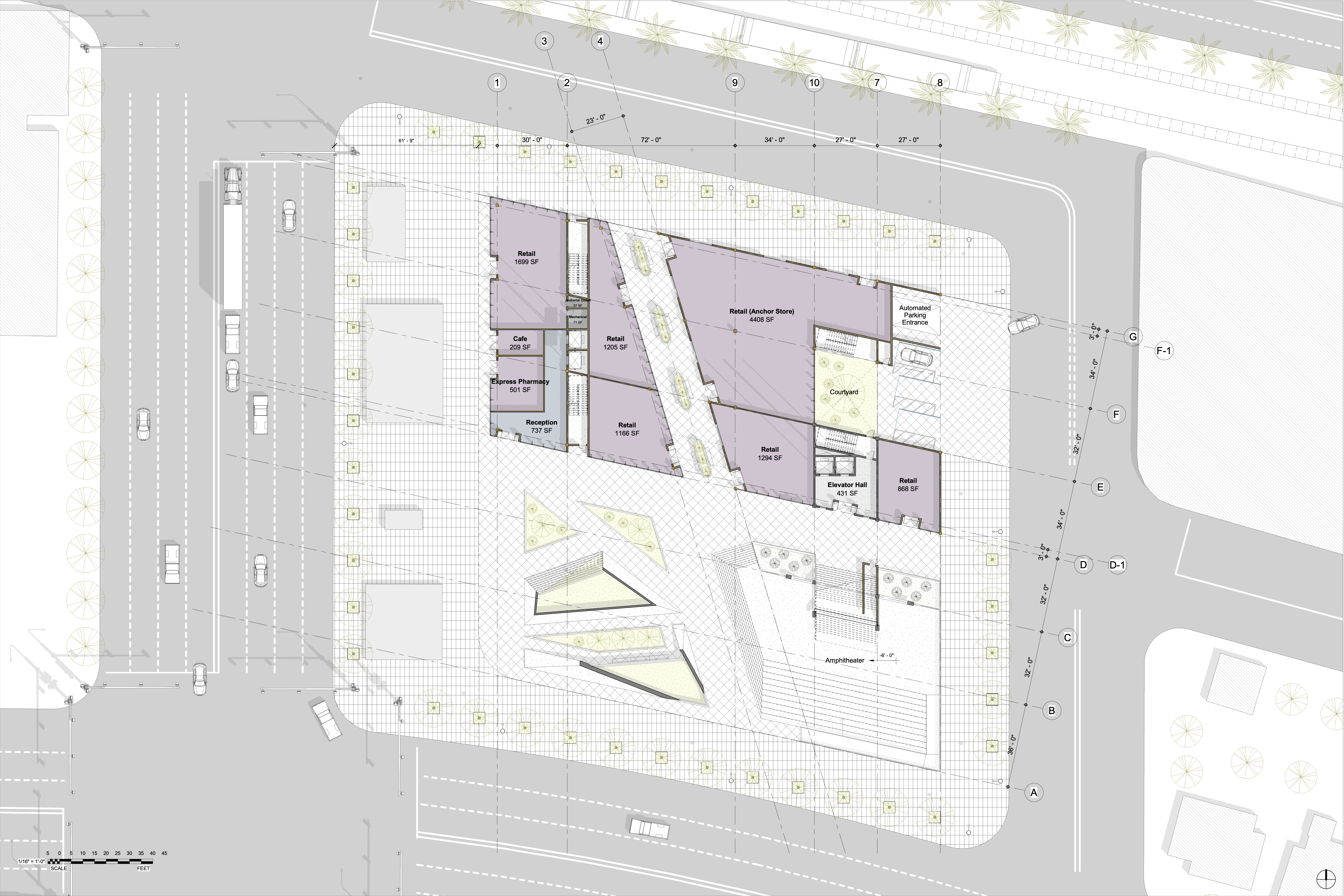

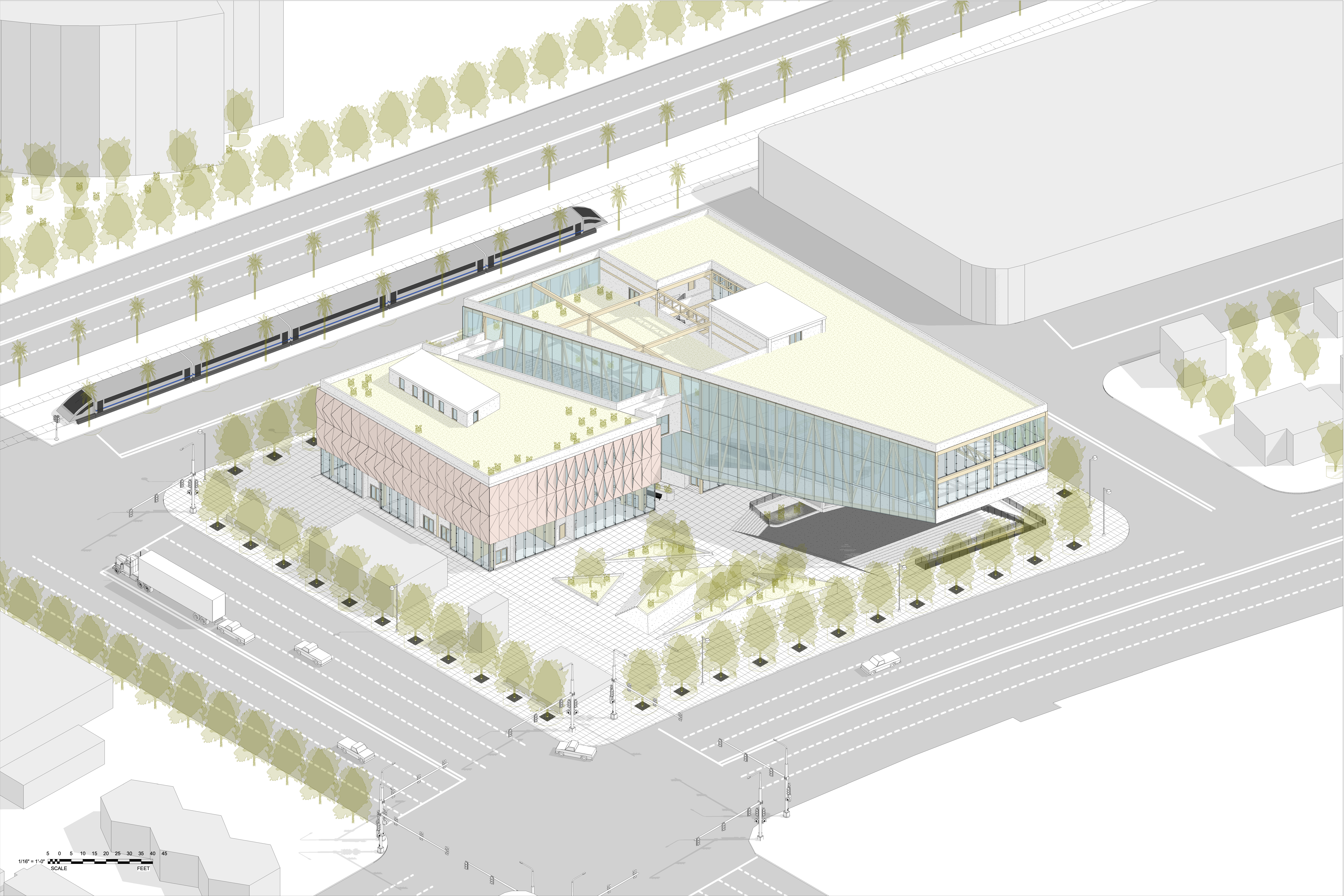

With the newly constructed station, the site becomes a node to connect the north and the south. Considering the orientation of the existing metro station entrance and the southern parcel, the L-shaped building creates a corner plaza for the public. The sunken space which incorporates landscape and furniture increases the possibilities and dynamics of the open space. The split volumes differentiate the different programs. The retails along with the diagonal pathway attract people to explore and gather to the center of the site.
